A detailed explanation of the design of FRP grid for the ground net of pigeon cage

Release time:

2020-01-16

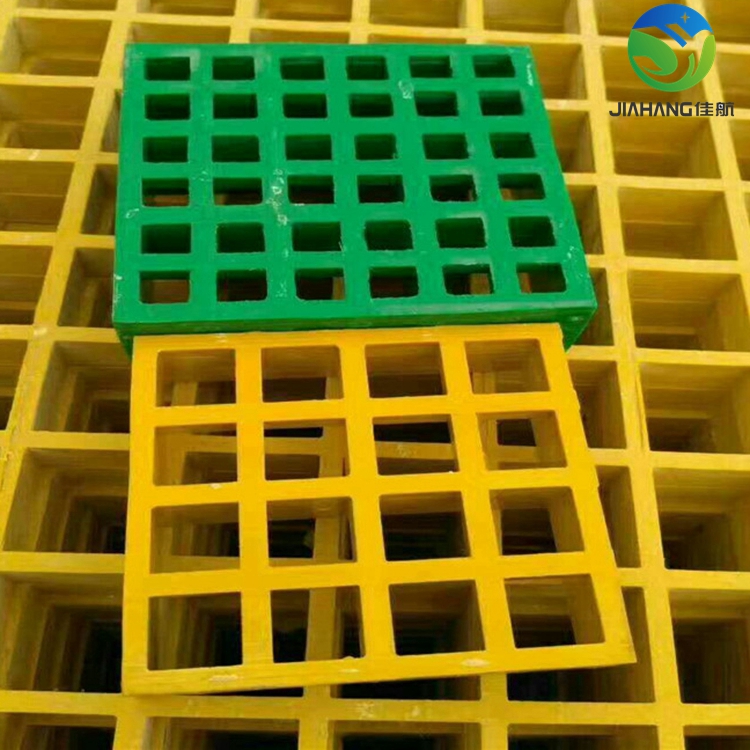

Now there are many kinds of pigeon cage ground net in the market. Today, I'd like to introduce the glass pigeon cage ground net to you. Fiberglass pigeon cage geogrid is a kind of plate-shaped material with certain opening rate, which is made of unsaturated polyester resin as the skeleton, woven and pressed on the metal mold or hand pasted and then heated and formed as a whole.

Cleaning of ground grid of FRP pigeon cage

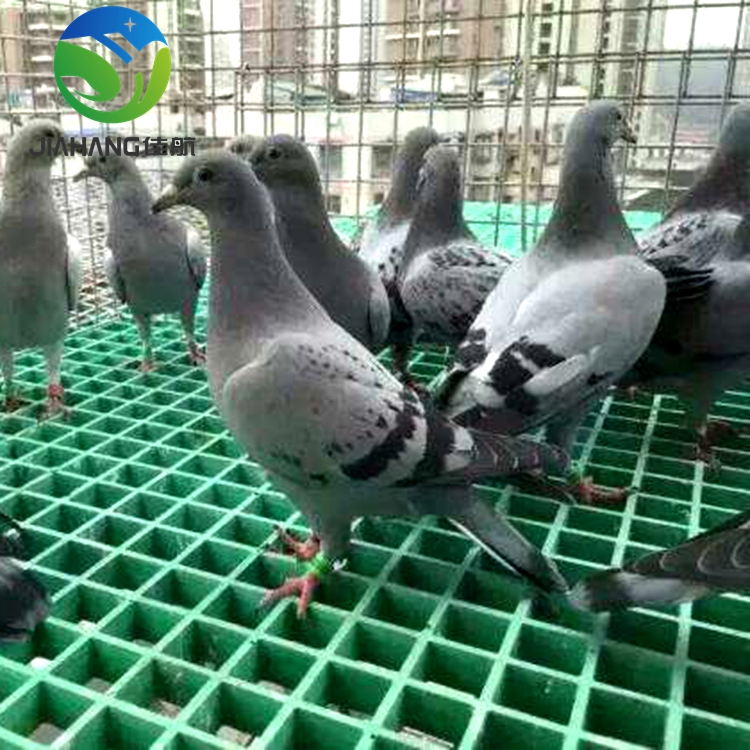

In the original wooden pigeon cage shed, the waste liquid and feces are on different ground, which has many inconveniences, and is easy to cause damage to the anti-corrosion ground. The fiberglass grid is used as the pigeon cage ground grid, the pigeon can be placed on the grid surface, and the waste liquid and feces can be discharged to the lower substrate ground, which can be washed with a powerful water jet to remove the ground debris. The fiberglass pigeon cage ground grid is different The number of defecation holes is narrow at the top and wide at the bottom, and the fecal urine is automatically discharged through the defecation holes, which can effectively maintain the sanitation of the breeding houses, without frequent manual cleaning, saving human and material resources.

Design of GFRP pigeon cage ground net

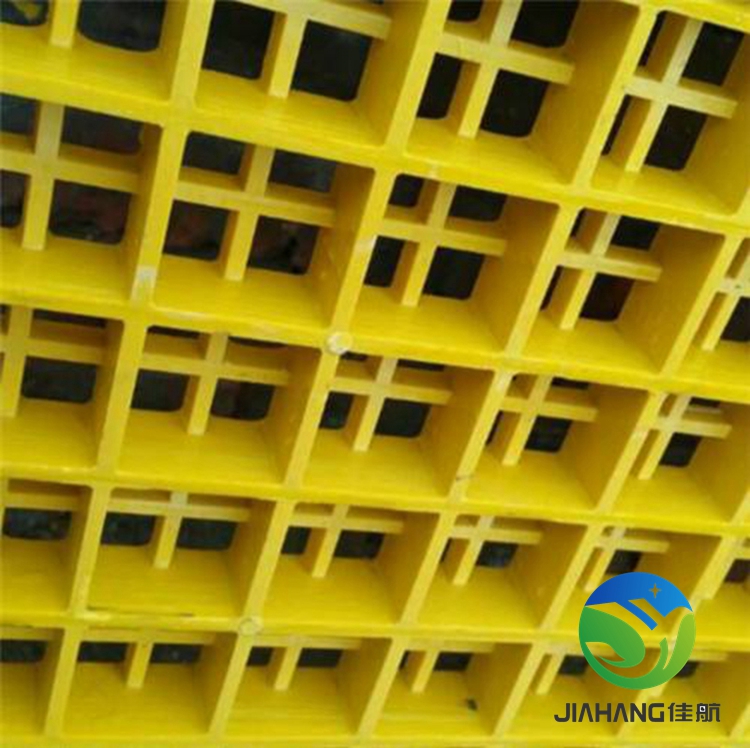

There are two specifications of GRP grid for GRP pigeon cage ground grid: one is 25 * 38 * 38mm as the ground grid plate, the inner diameter of the plate is 3.1mm, and the other is a cross microporous grid, its aperture is divided into two layers, the upper aperture is 12 * 12mm or 19 * 19cm, the lower aperture is 38 * 38cm or 50 * 50mm, this specification of GRP grid can prevent rats, weasels, etc. from entering the Pigeonhouse, with the size of 1.22 * 3.66M And 1 * 1.04M. Of course, this is the whole size. It can also be cut according to the requirements.

In general, the height of the ground for the installation of the breeding ground net from the ground net can be customized according to the actual operation of the customer. According to our experimental results, one support of 30cm is stable, and five adults stand on the ground net at the same time, but there are more supports needed. 50-80cm is suitable, and the number of supports needed for the stability is not much, 1m is also OK, and when one support is 1.2m, people stand on the ground The net vibrates a little, so we suggest that you can use one support in the range of 30cm-1m.

After using the ground net, pigeon cages can have sufficient ventilation all year round, reduce the accumulation of pathogenic microorganisms in summer, have the characteristics of wear resistance and corrosion resistance, greatly reduce the possibility of odor and fly reproduction, and give pigeons a healthy and clean living environment.
