It is better to cut the grid plate of FRP walkway in this way

Release time:

2019-12-16

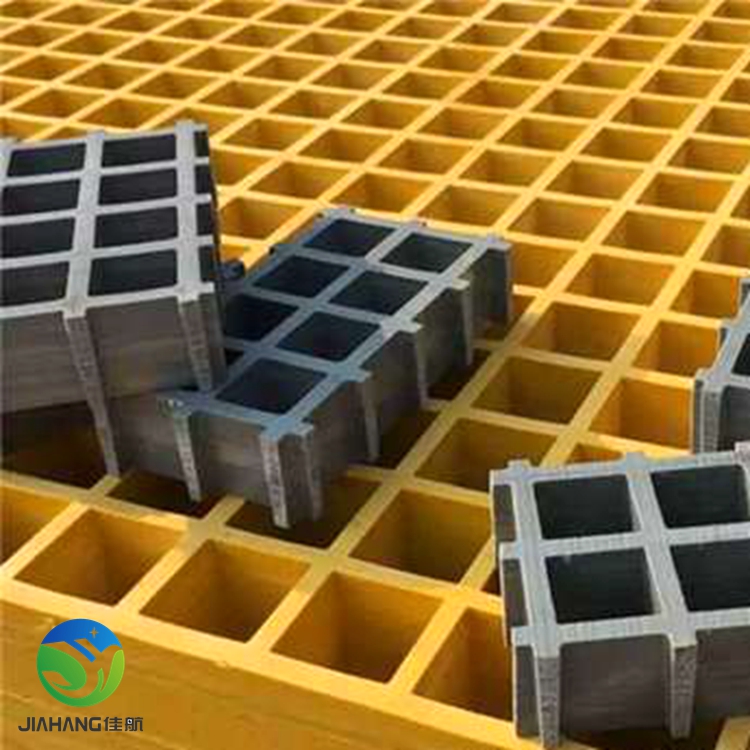

Glass fiber reinforced plastic maintenance walkway grid is a kind of glass fiber reinforced plastic grid. It is a kind of multi space plate structure made by adding glass fiber in unsaturated polyester resin. Because of adding glass fiber, it has good corrosion resistance, and it is also used in some projects that are often easy to corrosion but need ventilation and water permeability.

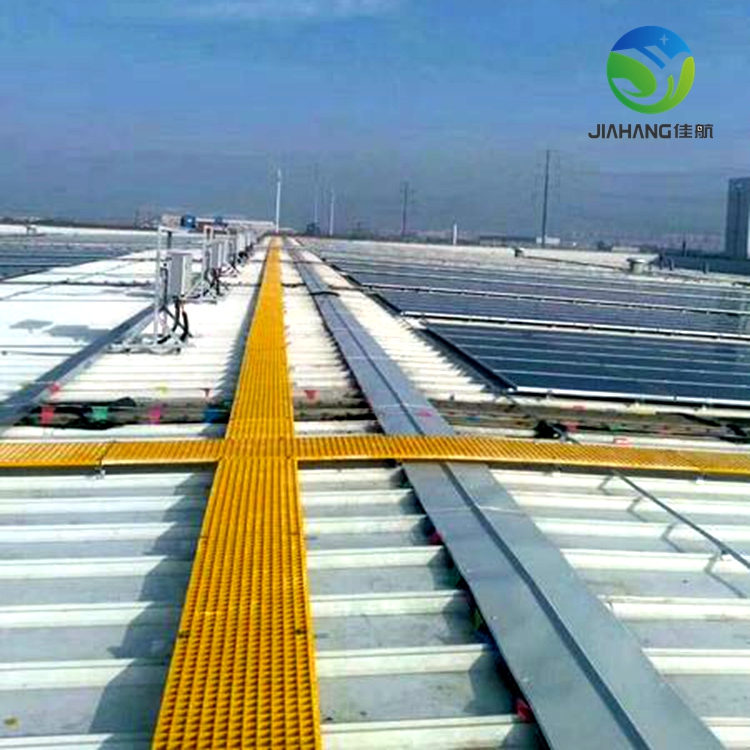

As FRP grid plate is a product molded on metal mold, it is used as trench cover plate, foot pedal, tree grate, operation platform and maintenance walkway plate. If the size is not regular, it needs to be cut. Let's have a detailed understanding of the cutting process of FRP maintenance walkway grill plate.

1. Safety of grid cutting personnel: cutting operators shall wear protective glasses, masks and gloves, work clothes, and select a well ventilated and bright place for cutting.

2. Cutting dimension error: before cutting the grating plate of fiberglass maintenance walkway, we should think about the amplitude of blade saw mark. After cutting, the length and width deviation of the grating is - 6mm ~ 0mm. If the dimension requirements are strict, we must consider the thickness of the cutter blade, so that it can be more strict when laying.

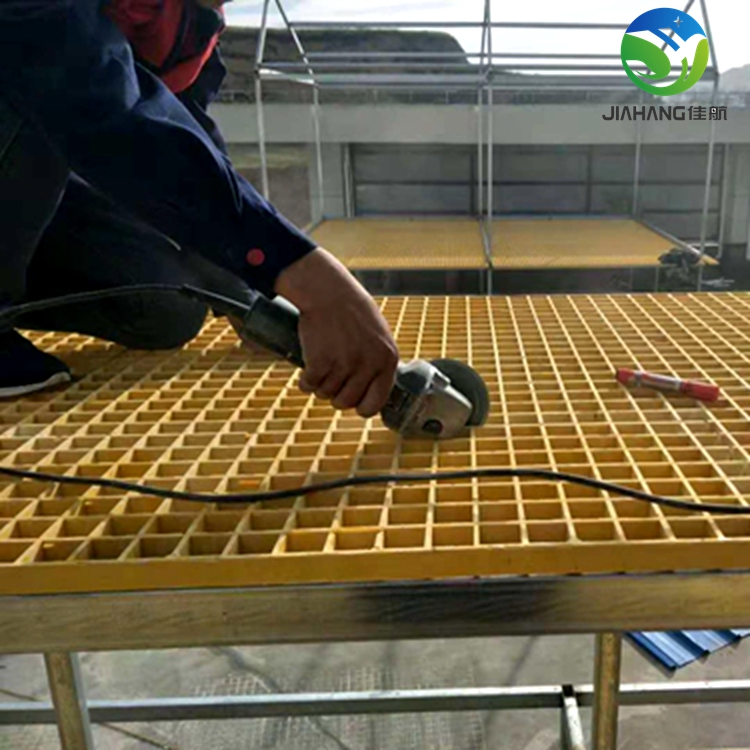

3. Cutting tools: glass fiber reinforced plastic maintenance walkway grating can be cut with ceramic disc or emery disc cutter, and heavy cutting machine needs to be fixed during use to prevent the movement of grating and cutting machine.

4. Difference between cutting burr and trimming: when cutting the grating plate of maintenance walkway, the bottom of the grating should be placed upward and then cut, which can reduce the occurrence of debris. The cutting for trimming looks more neat, with greater strength under stress and less injury during installation. When cutting into burr, there will be edge stubble, which is slightly under stress. When the bearing force is too large, the edge stubble is easy to be damaged, but it can save materials Material.

Glass fiber reinforced plastic maintenance walkway grating plate has the characteristics of light weight, high strength and easy to cut. According to the specific use requirements, the walkway grating plate suitable for the size of specifications can be cut. Its flexible plasticity can meet the different needs of various occasions, and the cutting work is relatively simple. Generally, heavy auxiliary equipment is rarely used, and only manual operation is required.
