Price of mechanical wound glass reinforced septic tank
Release time:
2019-12-14

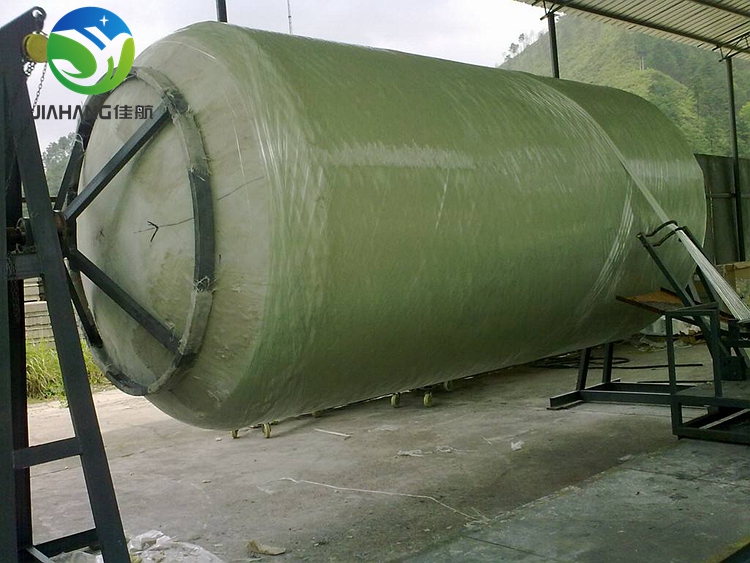

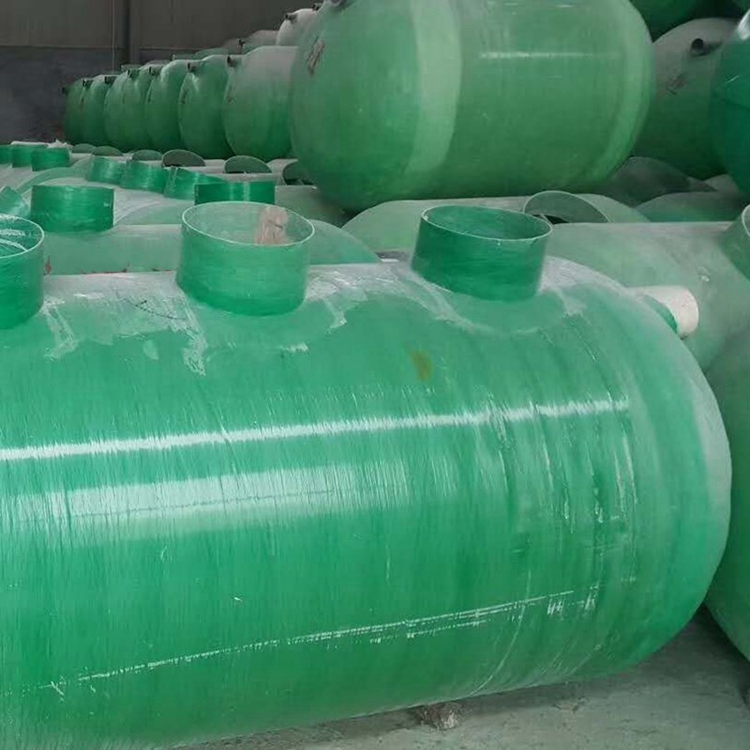

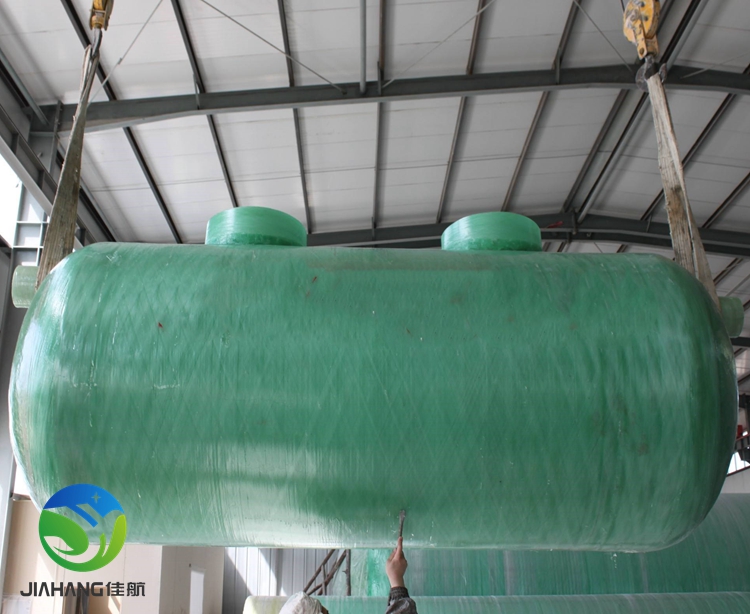

The mechanical wound glass septic tank is specially used for the treatment of domestic sewage. Its forming process is one-time integral forming, mechanical winding process, high compression structure
The mechanical wound glass septic tank is specially used for the treatment of domestic sewage. Its forming process is one-time integral forming, mechanical winding process, high compression structure design and manufacture, compression resistance, impact resistance, corrosion resistance and high strength.
I. price of mechanical wound glass reinforced septic tank:
The finished glass toughened feces are also temporarily stored to decompose in the tank, so as to reduce the solid content in the discharged sewage. Its model selection is based on different buildings, and the design parameters are calculated by the single project designer. For industrial and residential areas, there are more than 10-100 cubic meters, and the price is calculated according to each cubic meter.
II. Foundation excavation depth of mechanical wound glass reinforced septic tank
The excavation depth of the foundation of the glass reinforced septic tank is the sum of the thickness of the cushion + the thickness of the sand cushion + the diameter of the septic tank + the thickness of the covering soil.
Foundation treatment: if there is no underground water, it shall be compacted with plain soil under 100mm sand cushion, and both sides of the tank shall be compacted with plain soil; if there is underground water, it shall be paved with 100mm sand cushion on 100mm-300mm C10 concrete cushion, and both sides shall be compacted with plain soil. Sand cushion can prevent the abrasion of the septic tank after installation. If the underground water level reaches 50% of the tank body, anti floating measures shall be taken at this time.
III. thickness of the covering soil of the mechanical wound GRP septic tank
The thickness of the covering soil of the GRP septic tank is determined according to the installation position of the septic tank. When it is set in the green wetland or the simple pedestrian road, the thickness of the covering soil shall not be less than 0.8-1 m generally; if it is set in the community road, the thickness shall not be less than 1.2 m (if the thickness of the covering soil cannot be reached, the planting reinforced concrete protective layer shall be adopted for treatment.
The mechanical wound glass reinforced septic tank has compact structure, small floor area, and the actual floor area is about 60% of the traditional septic tank, which saves land resources. It is made of glass fiber reinforced unsaturated polyester resin high-strength glass fiber composite material, which is corrosion-free, acid-base resistant, not easy to aging and deformation, and extends the service life of the septic tank.
