Environmental protection and corrosion-resistant pigeon shed and loft floor net fecal leakage board
Release time:
2019-12-04
Fecal leakage board is a kind of board equipment that can not only carry the daily activities of livestock and poultry, but also make the feces naturally leak into the fecal pit. There are many kinds
Fecal leakage board is a kind of board equipment that can not only carry the daily activities of livestock and poultry, but also make the feces naturally leak into the fecal pit. There are many kinds of fecal leakage boards, such as cement fecal leakage board, plastic fecal leakage board, reinforced concrete fecal leakage board, and glass fiber reinforced plastic fecal leakage board. Next, we will introduce how to use the glass fiber reinforced plastic grid in the loft floor network.

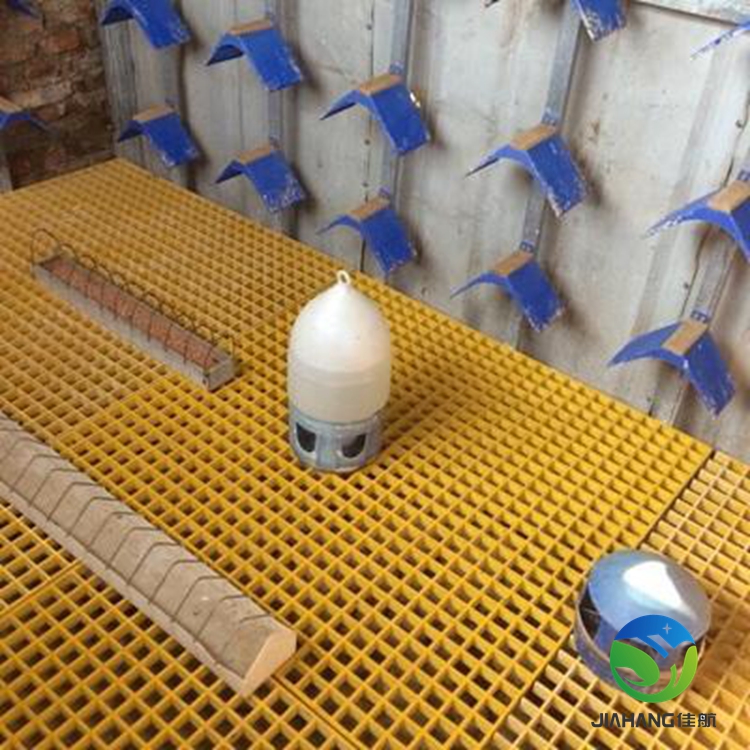

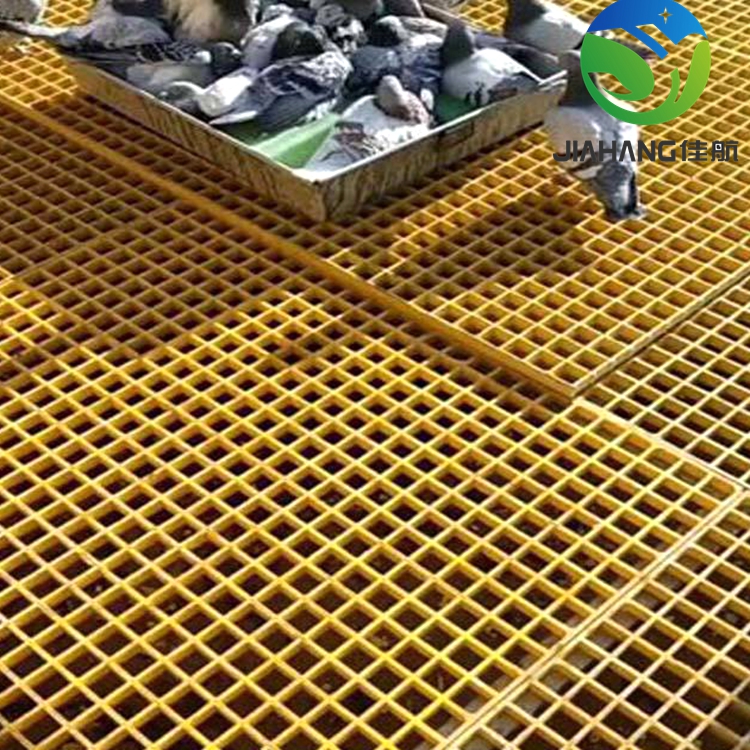

Cutting and installation of GFRP grid for loft ground grid
GRP grid is produced on the mold, so its size is fixed. There are three kinds of GRP grid: 1 × 4.04m 1.22 × 2.44m 1.22 × 3.66M. Some loft floor grids are not the standard size, so don't worry about it. GRP grid can be cut at will according to the demand. After cutting, the mechanical properties of the grid will not be changed, nor will it cause scattering and other consequences. For cutting, ceramic disc or emery disc cutter can be used for on-site cutting, and even ordinary hacksaw blade can be used. Generally, portable angle grinder, grinder, ordinary file and sandpaper are used for grinding.
The installation process of GFRP grid for loft ground grid is very simple: determine the size, and fix the grid with clips after cutting.
On the installation of ground grid support beam of fiberglass loft
When laying the FRP grid, the support beam should be set below. Generally, we suggest that the gap between the support beams should be 30-40 cm. This is conducive to the service life and safety of FRP grid, not that the gap is greater than 40 cm, it is more appropriate within this reasonable range.

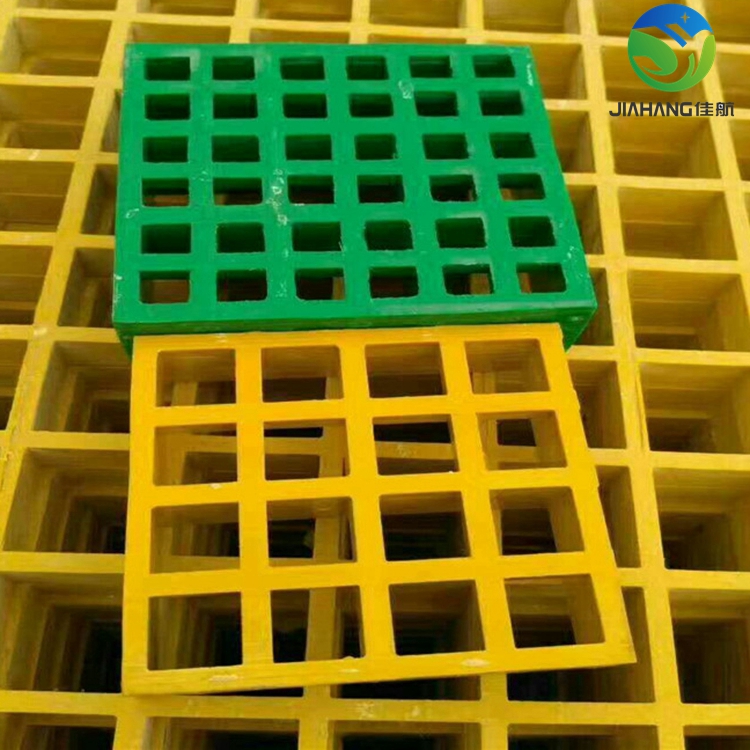

Specification and model of GRP grid for loft ground grid
The thickness of GFRP ground grid is 2.5cm, and the mesh is divided into 3.3cm, 3.1cm and 1.9cm.
The GRP grid for loft ground grid is made of unsaturated polyester resin, glass fiber roving and filler powder. It has the characteristics of acid and alkali corrosion resistance, light weight and high strength, long service life, etc. it will not rot and damage due to acid and alkali corrosion like the grid plate of wood plastic, and its internal structure is stable, without frequent inspection and maintenance.
